PRODUCT > Printing UV Curing System > Conveyer UV Curing System |
|
|
 |
|
|
 |
 |
|
| Model |
UT-9600OF |
|
| Type |
Switch Button |
| Power |
9.6KW |
| Use |
Offset Printing Machinery |
| Power
Supply |
220V/380V, 50Hz/60Hz |
| Lamp
Name |
Mercury, Mtal Halide Lamp(select) |
| Lamp
Size |
600 * 700 |
| Reflector |
Aluminum Reflector |
| Cooling |
Air Cooling |
| Option |
Cold Mirror / Hot Mirror |
|
|
|

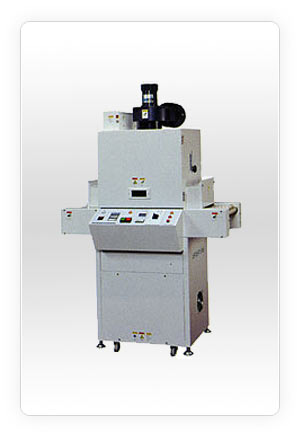

● This machine is designed for Offset Printing Machine, using an indirect printing process whereby
ink is transferred to the paper by a blanket that carries an impression from the printing plate.
● According to the size of the lamp, we can customize it to meet your requirements.
● It uses Switch Button Operation so that it may be easy enough for a beginner and powerful and accurate
enough for a professional.
● An elliptical focus type reflector maximizes curing.
● UV curing technology provides High-Speed Printing.
● It adopts an effective cooling system which can ensure low temperature cure of the printed material.
● Possible to change the size of lamp, depending on the printing paper width
● Clients: Heidelberg, Mitsubishi, Rolland, Gomori, and so on |
|
|
|
|
|
