PRODUCT > Printing UV Curing System > Silk Screen UV Curing System |
|
|
 |
|
|
 |
 |
|
| Model |
UT-5000S
|
|
| Type |
PLC program |
| Power |
5KW |
| Use |
Roll SCreen Printing Machinery |
| Power
Supply |
220V/380V, 50Hz/60Hz |
| Lamp
Name |
Mercury,Mtal Halide Lamp |
| Lamp
Size |
300 * 400 |
| Reflector |
Aluminum Reflector |
| Cooling |
Air Cooling |
| Monitor |
Touch screen |
|
|
|

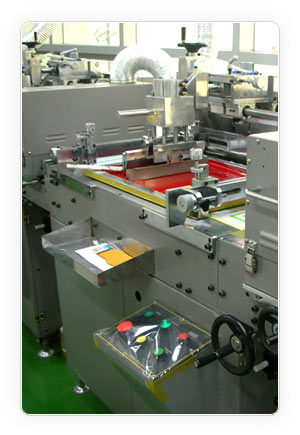

● This machine is designed for Roll to Roll Screen Printing Machine.
● According to the size of the lamp, we can customize it to meet your requirements.
● Installed with Select Mode, it can automatically control the output of the UV Lamp to adjust to the velocity
of the printing machine.
● PLC Program Operation and Touch Screen, which can change printing programs easily, make its operation
much more convenient.
● Multi-guide inspection display interfaces, which can show the state of equipment and error messages
on its monitor, facilitates its maintenance and repair.
● An elliptical focus type reflector maximizes curing.
● It adopts an effective cooling system which can ensure low temperature cure of the printed material.
● Possible to change the size of lamp, depending on the printing paper width
● Application: Various kinds of screen printing machine enterprises. |
|
|
|
|
|
